Onkyo - HT-S7800

The HT-S7800 package includes a powerful A/V receiver loaded with features you need for memorable entertainment every night.

  • Power Output: 160 W/Ch (6 Ohms, 1 kHz, 1% THD, 1 Channel Driven, IEC) ; 175 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven, JEITA)
  • Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
  • Dimensions (W x H x D): 435 x 173.5 x 378 mm
  • Weight: 10.0 kg
  • Description

    • The HT-S7800 package includes a powerful A/V receiver loaded with features you need for memorable entertainment every night: high-current amps, Dolby Atmos®, DTS:X™, 4K/60 Hz/HDR video. For music, there’s Google Cast™, AirPlay, and Wi-Fi® to stream albums from smartphone and PC apps. The high-quality speaker system is a snap to set up, with AccuReflex phase-aligning object-based formats for super-clear multidimensional sound.

  • Specification - A/V RECEIVER

    • A/V RECEIVER

      1. Next-Generation DTS:X™ Sound Format Ready
      2. Supports Dolby Atmos® Format for Exciting Multidimensional Sound
      3. 4K/60 Hz-Capable 4:4:4 HDMI® Terminals for UltraHD Entertainment*1
      4. Supports HDCP 2.2 and HDR for Future 4K/Full HD Video Streaming and Broadcast*2
      5. 8 HDMI Inputs (1 Front/ 7 Rear) and 2 Outputs
      6. Built-in Wi-Fi® Certified Wireless LAN Capability
      7. Bluetooth Version 4.1 (Compatible Profile: A2DP v1.2, AVRCP v1.3) with Advanced Music Optimizer DSP Technology
      8. Internet Radio and Music Streaming Subscription Services Included (TuneIn Radio, Pandora®, Spotify, TIDAL, and Deezer)*3
      9. Digital and Analog Audio Transmission to Optional Wireless Speaker via FireConnect™ Technology
      10. Play Compressed, Lossless, and Hi-Res Audio via Local Network (MP3, WMA, FLAC, WAV, AAC, Apple Lossless, and DSD 5.6 MHz)
      11. AccuEQ Room Calibration Featuring AccuReflex Technology for Seamless Object-based Sound from Compatible Speakers (Mic Included)
      12. Advanced Music Optimizer to Improve Compressed Digital Audio Quality (Bluetooth Audio Included)
      13. Control and Stream with Free Onkyo Remote Streaming Apps for iPod touch/iPhone*4 and Android™ Devices*5
      14. Powered Zone 2 and Zone 2 Line Out for Distributed Analog/Digital Audio Playback in Another Room
      15. Bi-Amping Capability for Front Channels
      16. Dynamic Audio Amplification for a Thrilling Audio Experience
      17. H.C.P.S. (High Current Power Supply) Massive High Power Transformer
      18. High Current Amp Design to Effectively Drive the Speakers
      19. Non-Phase Shift Amp Circuits for Realistic Imaging
      20. VLSC™ for a Clear Audio Experience
      21. Optimum Gain Volume Circuitry
      22. PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
      23. HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos®, Dolby® TrueHD, DTS:X™, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
      24. Dolby® TrueHD and DTS-HD Master Audio™ Decoding
      25. AK4458 384 kHz/32-bit DAC (8 Channels x 1)
      26. 32-bit Digital Signal Processing Engines
      27. 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
      28. Theater-Dimensional Virtual Surround Function
      29. CinemaFILTER™
      30. Direct Mode
      31. Double Bass Function
      32. USB 2.0 Port
      33. Mass Storage Class USB Memory Playback Capability (Including Dolby® TrueHD)
      34. 2 Component Inputs
      35. 2 Composite Video Inputs
      36. 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
      37. 8 Analog Audio Inputs
      38. Phono Input for Turntable Connection
      39. 2 Parallel Subwoofer Pre-Outs
      40. Location-Numbered Speaker Terminals
      41. Crossover Adjustment for Each Channel (40 ⁄ 50 ⁄ 60 ⁄ 70 ⁄ 80 ⁄ 90 ⁄ 100 ⁄ 120 ⁄ 150 ⁄ 180 ⁄ 200 Hz)
      42. A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
      43. Graphical Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up
      44. Hybrid Standby Function with HDMI Passthrough
      45. Tone Control (Bass/Treble) for Front L/R Channels
      46. 3-Mode Display Dimmer (Normal/Dim/Dimmer)
      47. 40 FM/AM Random Presets
      48. Firmware Updates via Ethernet and USB
      49. RIHD (Remote Interactive Over HDMI) for System Control

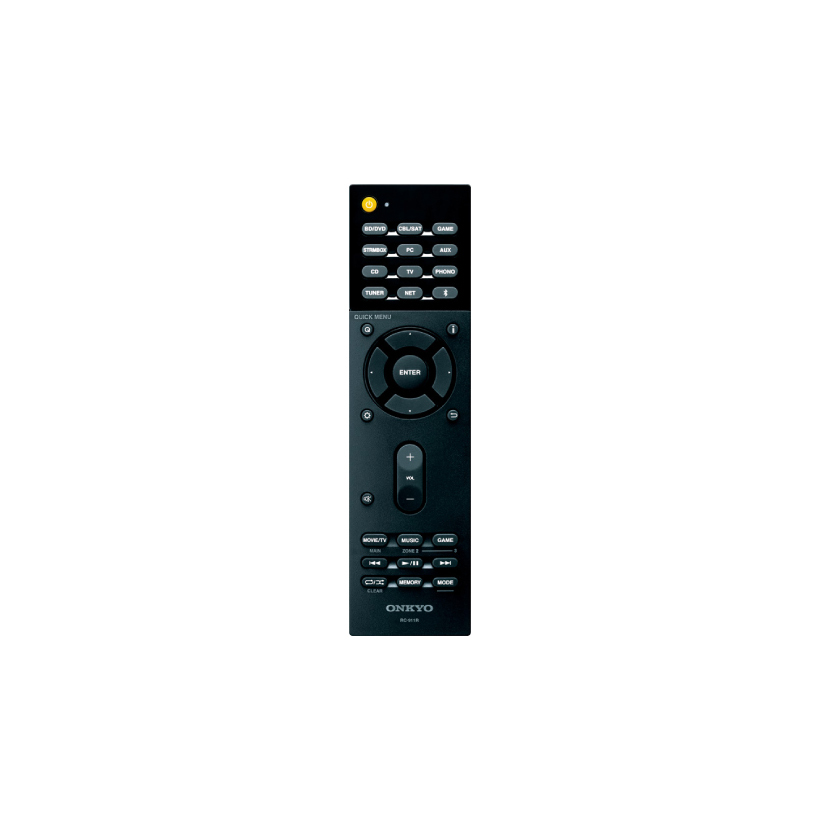

      50. Simple Remote Control
      51. *1 6G video is supported on HDMI inputs 1/2/3, Main Out, and Sub Out.
      52. *2 HDCP 2.2 is supported on HDMI inputs 1/2/3, Main Out, and Sub Out.
      53. *3 Availability of services depends on region. Some services may require a paid subscription and firmware update. Availability of third-party services advertised here is accurate at the time of publication, but may be subject to change without notice.
      54. *4 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All models require iOS 4.2 or later.
      55. *5 Requires Android 2.1 or later.
  • Specification - HOME THEATER SPEAKER SYSTEM

    • SKF-693 Dolby Atmos-Enabled 2-Way Bass Reflex Front Speakers/ Foll-Range Acoustic-Suspension Height Speakers

      1. 12 cm OMF Diaphragm Woofer
      2. 2.5 cm Balanced-Dome Tweeter
      3. 8 cm Cone (Separately Powered By Height Channel)
      4. Max. Input Power: 130 W

      SKC-591N 2-Way Bass Reflex Center Speaker

      1. 8 cm Cone Woofer x 2
      2. 2.5 cm Balanced-Dome Tweeter
      3. Max. Input Power: 130 W
      4. Gloss-Finished Side Panels

      SKR-590 Foll-Range Acoustic-Suspension Surround Speakers

      1. 8 cm Cone
      2. Max. Input Power: 130 W
      3. *Note: All speakers feature an impedance of 6 ohms and color-coded speaker terminals.

      SKW-591 Bass Reflex Powered Subwoofer

      1. Large 25 cm Cone
      2. Rated Output Power: 120 W (Minimum Continuous Power, 4 Ohms, 100 Hz, 1%, IEC)
      3. Powerfol and Efficient Digital Amplifier
      4. Down-Firing Design
