A/V RECEIVER

1. THX® I/S Plus™ Certified for Theater-Reference Sound
2. Supports Dolby Atmos® Multidimensional Sound Format
3. 4K/60 Hz-Capable HDMI® Terminals for Ultra HD Entertainment*1
4. Supports HDCP 2.2 for Future 4K/Full HD Video Streaming and Broadcast*2
5. 7 HDMI Inputs (1 Front/6 Rear) and 2 Outputs
6. Built-in Wi-Fi® Certified Wireless LAN Capability
7. Bluetooth Version 2.1 + EDR Capability with Advanced Music Optimizer DSP Technology
8. Three-Stage Inverted Darlington Circuitry for Front and Center Channels
9. HDMI Video Upscaling to 4K with Qdeo™ Processing Technology by Marvell
10. Internet Radio and Music Streaming Subscription Services Included (TuneIn Radio, Pandora®, Spotify, AUPEO!, and Deezer)*3
11. Playback Compressed, Lossless, and Hi-Res Audio via Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz, LPCM*4, and Dolby® TrueHD)

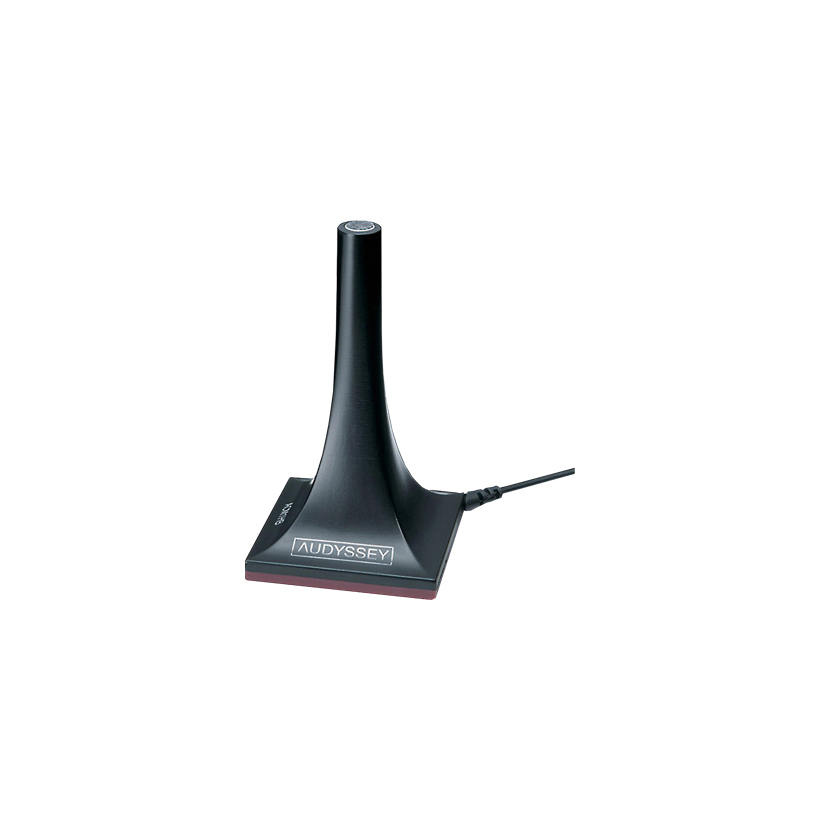

12. Proprietary AccuEQ Room Calibration with Mic Included
13. Advanced Music Optimizer for Compressed Digital Audio Enhancement
14. Control and Stream with Free Onkyo Remote Streaming App for iPod touch/iPhone*5 and Android Devices*6
15. Frontside MHL™ for 1080p Video and Stills from Smartphone and Tablet
16. Input Source Preview with InstaPrevue™ Technology
17. PM Bass Boost for Deep Bass and Clear Mid-Range
18. Powered Zone 2 and Zone 2 Line-Out for Distributed Audio Playback in Another Room
19. Bi-Amping Capability for Front Channels
20. WRAT (Wide Range Amplifier Technology)
21. H.C.P.S. (High Current Power Supply) Massive High Power Transformer, Discrete Output Stage Circuitry, and Optimum Gain Volume Circuitry
22. PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
23. Dolby Atmos®, Dolby® TrueHD, and DTS-HD Master Audio™ Decoding
24. TI Burr-Brown 192 kHz/24-Bit DAC (8 Channels x 1)
25. Dual 32-Bit Digital Signal Processing Engines
26. 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
27. Direct Mode and Pure Audio Mode
28. Mass Storage Class USB Memory Playback Capability
29. HDTV-Capable (720p/1080i) Component Video Switching (1 Input and 1 Output)
30. 3 Composite Video Inputs and 1 Output
31. 3 Digital Audio Inputs (1 Optical and 2 Coaxial)
32. 6 Analog Audio Inputs
33. Phono Input for Turntable Connection
34. 2 Parallel Subwoofer Pre-Outs
35. A/V Sync Control (Up to 400 ms in 10 ms Steps at 48 kHz)
36. Graphical Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up and Home Menu
37. Hybrid Standby Function with HDMI Passthrough
38. Tone Control (Bass/Treble) for Front L/R Channels
39. 40 FM/AM Random Presets
40. Compatible with RI Dock for iPod/iPhone and AirPlay (DS-A5)

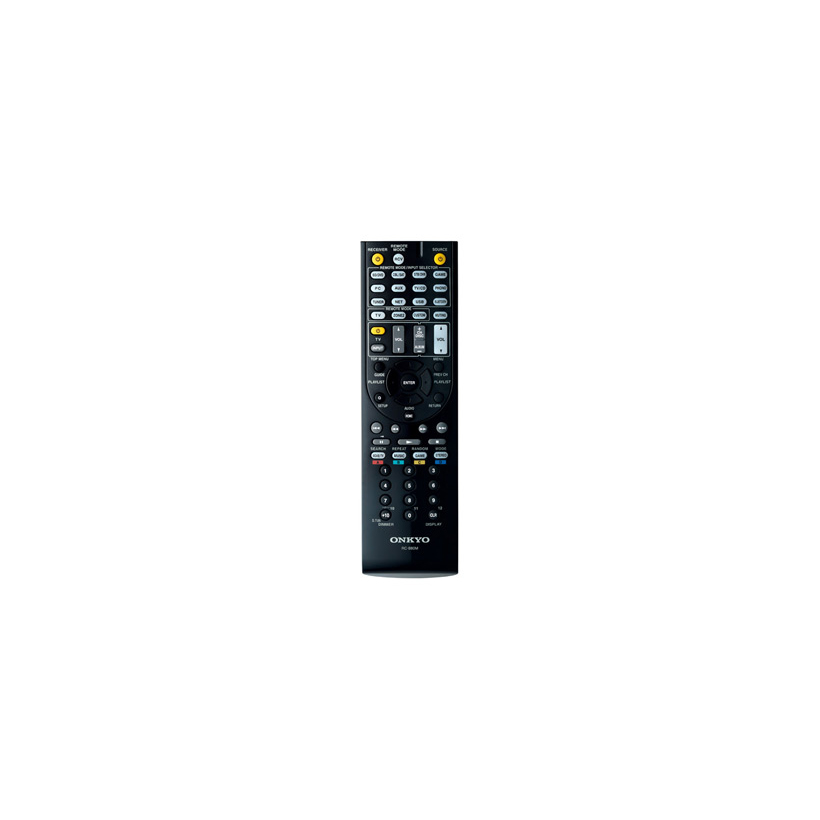

41. Preprogrammed RI (Remote Interactive) Remote Control
42. *1 4K/60 Hz video is supported on HDMI inputs 1/2/3/4, the frontside input, Main Out, and Sub Out.
43. *2 HDCP 2.2 is supported on HDMI Input 3 and Main Out only.
44. *3 Availability of services depends on region. Some services may require a paid subscription and firmware update. Availability of third-party services advertised here is accurate at the time of publication, but may be subject to change without notice.
45. *4 LPCM is supported via DLNA only.
46. *5 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All models require iOS 4.2 or later.
47. *6 Requires Android OS 2.1 or later.

SKF-980 2-Way Acoustic-Suspension Front Speakers

1. 12 cm A-OMF Diaphragm Woofer x 2
2. 2.5 cm Soft-Dome Tweeter
3. Max. Input Power: 130 W
4. Magnetically Shielded

SKC-980 2-Way Acoustic-Suspension Center Speaker

1. 12 cm A-OMF Diaphragm Woofer x 2
2. 2.5 cm Soft-Dome Tweeter
3. Max. Input Power: 130 W
4. Magnetically Shielded

SKR-980 2-Way Acoustic Suspension Surround Speakers

1. 12 cm A-OMF Diaphragm Woofer x 2
2. 2.5 cm Soft-Dome Tweeter
3. Max. Input Power: 130 W
4. Magnetically Shielded

SKR-980/SKB-980 2-Way Acoustic-Suspension Surround/Surround Back Speakers

1. 13 cm A-OMF Diaphragm Woofer
2. 2.5 cm Soft-Dome Tweeter
3. Max. Input Power: 130 W

SKW-938 Acoustic-Suspension Powered Subwoofer

1. 30 cm Cone
2. Rated Output Power: 125 W (Minimum Continuous Power, 6 Ohms, 100 Hz, 1%, IEC)
3. Output Level Control and Auto Standby Function
