AMPLIFIER FEATURES

1. Dynamic Audio Amplification for a Thrilling Audio Experience
2. H.C.P.S. (High Current Power Supply) Massive High Power Transformer
3. High Current Amp Design to Effectively Drive the Speakers
4. Non-Phase Shift Amp Circuits for Realistic Imaging
5. VLSC™ for a Clear Audio Experience
6. PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
7. Optimum Gain Volume Control

PROCESSING FEATURES

1. DTS: X™ and Dolby Atmos® Decoding
2. HDMI® Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos®, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
3. Dolby® TrueHD and DTS-HD Master Audio™ Decoding
4. AK4458 384 kHz/32-bit DAC (8 Channels x 1)
5. Advanced 32-bit DSP Chip
6. 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
7. Theater-Dimensional Virtual Surround Function
8. CinemaFILTER™
9. Direct Mode
10. Double Bass Function

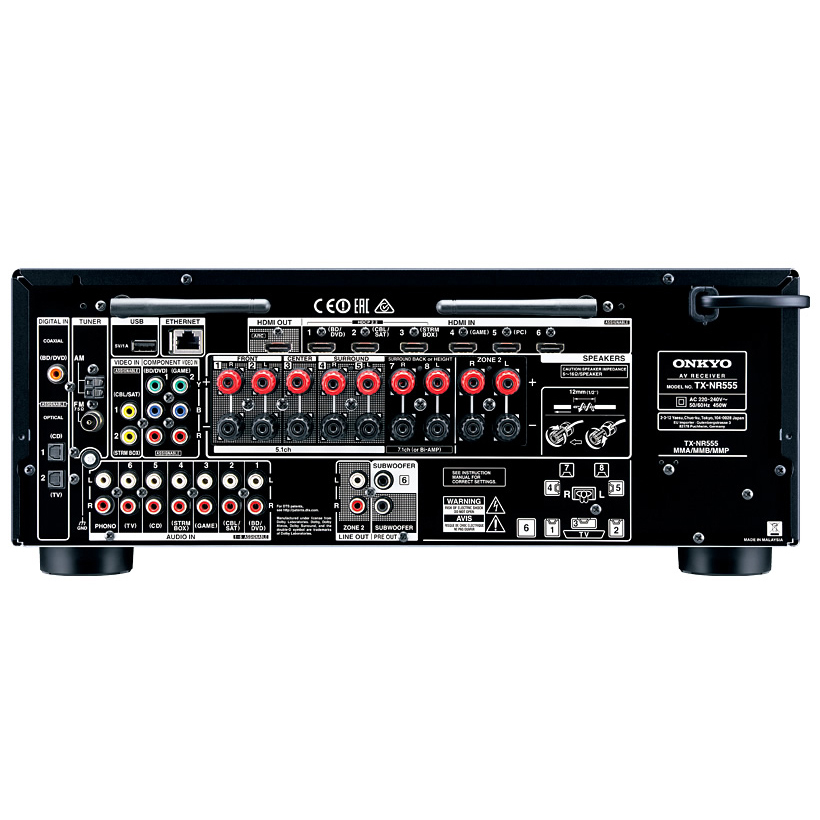

CONNECTION FEATURES

1. 6 HDMI Inputs and 1 Output
2. USB 2.0 Port
3. Mass Storage Class USB Memory Playback Capability
4. 2 Component Video Inputs (Rear)
5. 2 Composite Video Inputs (Rear)
6. 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
7. 8 Analog Audio Inputs (1 Front*/7 Rear)
8. Phono Input for Turntable Connection
9. 2 Parallel Subwoofer Pre-Outs
10. Banana Plug-Compatible Speaker Posts
11. Headphone Jack
12. *3.5mm pin jack type.

OTHER FEATURES

1. Crossover Adjustment for Each Channel (40 ⁄ 50 ⁄ 60 ⁄ 70 ⁄ 80 ⁄ 90 ⁄ 100 ⁄ 120 ⁄ 150 ⁄ 180 ⁄ 200 Hz)
2. A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
3. Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up
4. Hybrid Standby Function with HDMI Passthrough to Reduce Power Consumption
5. Quick Configuration Rear Panel
6. Tone Control (Bass/Treble) for Front L/R Channels
7. 3-Mode Display Dimmer (Normal/Dim/Dimmer)
8. 40 FM/AM Random Presets
9. Firmware Updates via Ethernet and USB
10. RIHD (Remote Interactive Over HDMI) for System Control

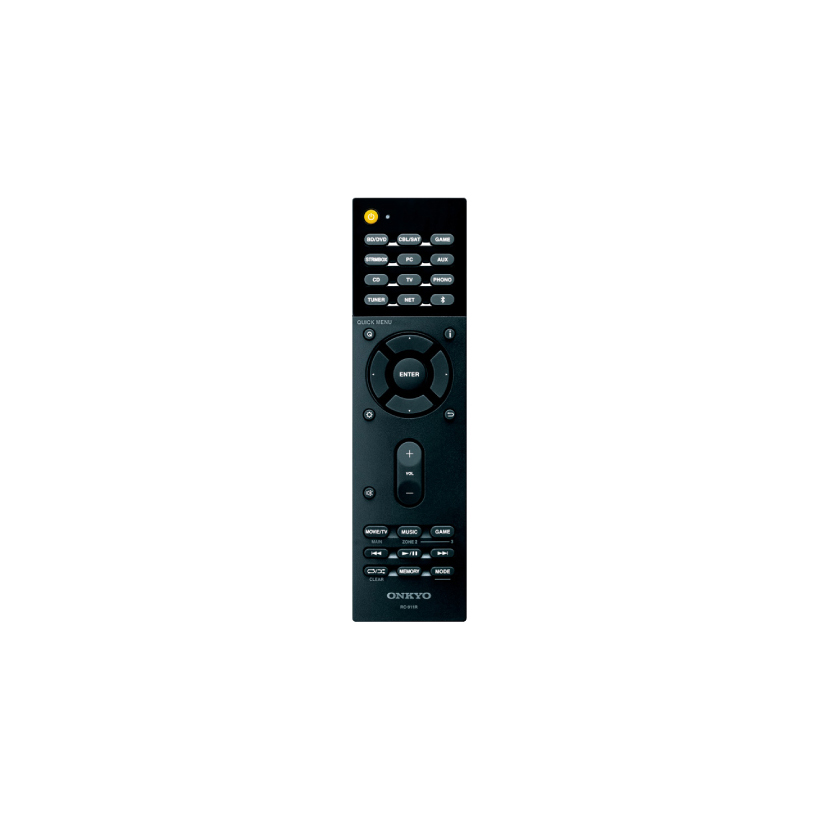

11. Simple Remote Control

GENERAL SPECIFICATIONS

1. Power Output: 130 W/Ch (6 Ohms, 1 kHz, 1% THD, 1 Channel Driven, IEC); 160 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven, JEITA)
2. Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
3. Dimensions (W x H x D): 435 x 173.5 x 378 mm
4. Weight: 9.6 kg
