AMPLIFIER FEATURES

1. WRAT (Wide Range Amplifier Technology)
2. H.C.P.S. (High Current Power Supply) Massive High Power Transformer
3. Discrete Output Stage Circuitry
4. PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio

PROCESSING FEATURES

1. HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
2. Dolby® TrueHD and DTS-HD Master Audio™ Decoding
3. TI Burr-Brown 192 kHz/24-bit DAC for All Channels
4. Advanced 32-bit DSP Chip
5. 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
6. Theater-Dimensional Virtual Surround Function
7. CinemaFILTER™
8. Direct Mode
9. Double Bass Function
10. Non-Scaling Configuration
11. A-Form Listening Mode Memory

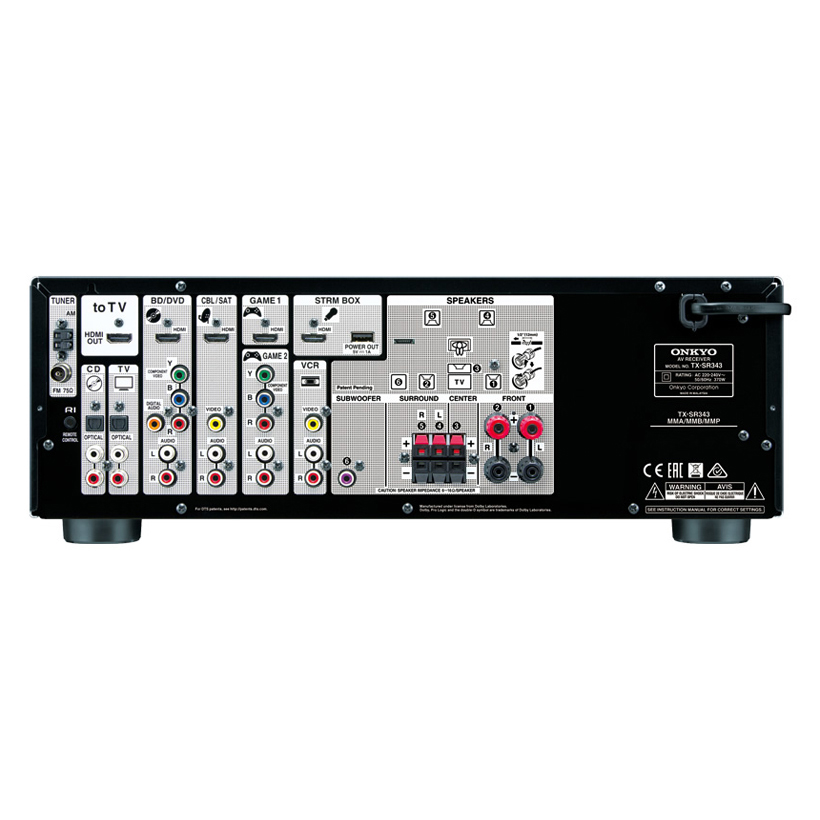

CONNECTION FEATURES

1. 4 HDMI Inputs and 1 Output
2. USB Port (Rear) for Powering Media Streaming Sticks (5 V, 1 A)
3. 2 Component Video Inputs (Rear)
4. 3 Composite Video Inputs (1 Front/2 Rear)
5. 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
6. 7 Analog Audio Inputs (1 Front/6 Rear)
7. Subwoofer Pre-Out
8. Headphone Jack

OTHER FEATURES

1. Crossover Adjustment for Each Channel (40 ⁄ 50 ⁄ 60 ⁄ 70 ⁄ 80 ⁄ 90 ⁄ 100 ⁄ 120 ⁄ 150 ⁄ 200 Hz)
2. A/V Sync Control (Up to 500 ms in 10 ms Steps at 48 kHz)
3. Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up
4. HDMI Passthrough Function
5. Tone Control (Bass/Treble) for Front L/R Channels
6. 3-Mode Display Dimmer (Normal/Dim/Dimmer)
7. 40 FM/AM Random Presets
8. RIHD (Remote Interactive Over HDMI) for System Control
9. Full-Function RI (Remote Interactive) Remote Control

GENERAL SPECIFICATIONS

1. Power Output: 100 W/Ch (6 Ohms, 1 kHz, 1% THD, 1 Channel Driven, IEC); 120 W/Ch (6 Ohms, 1 kHz, 1% THD, 1 Channel Driven, JEITA)
2. Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
3. Dimensions (W x H x D): 435 x 160 x 328 mm
4. Weight: 8.0 kg
