Yamaha - RX-V681

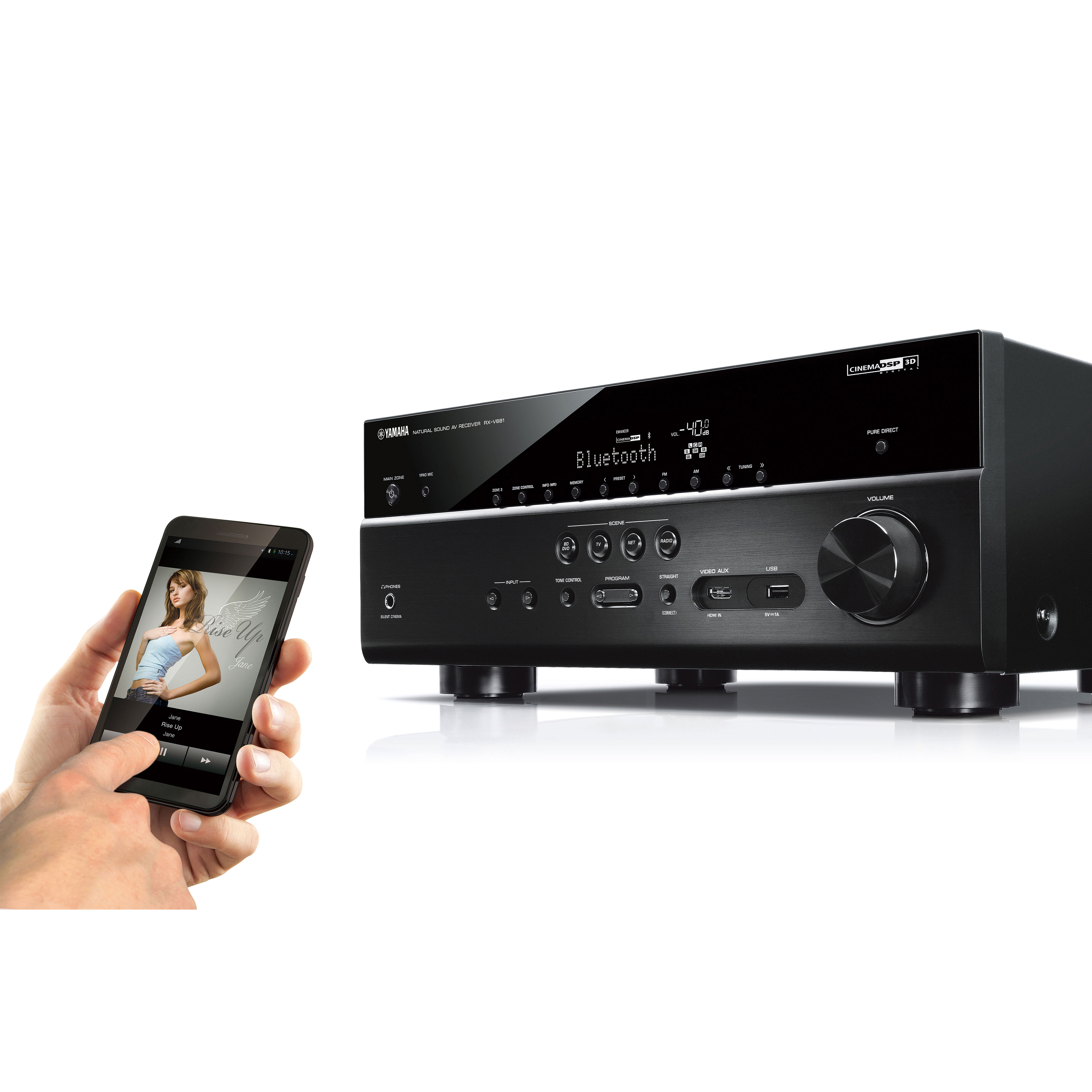

This 7.2-channel 4K Ultra HD network AV receiver features Dolby Atmos® and DTS:X™ object based surround sound. The free MusicCast Controller app makes it easy to access your music library and streaming music services.

7.2 Ch, 150W per Ch

Description
- This 7.2-channel 4K Ultra HD network AV receiver features Dolby Atmos® and DTS:X™ object based surround sound. The free MusicCast Controller app makes it easy to access your music library and streaming music services. Add audio in up to 9 additional rooms with MusicCast wireless speakers or other MusicCast devices. Wi-Fi®, Bluetooth® and AirPlay® wireless connectivity, a phono input for vinyl playback and Zone 2 audio provide added system versatility.

Specification

		RX-V681
AV Receiver
Amplifier Section	Channel	7.2
	Rated Output Power (1kHz, 1ch driven)	150 W (4 ohms, 0.9% THD)
	Rated Output Power (20Hz-20kHz, 2ch driven)	90 W (8 ohms, 0.06% THD)
	Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)	150 W (8 ohms, 10% THD)
	Dynamic Power per Channel (8/6/4/2 ohms)	125 / 165 / 190 / 235 W
Surround Sound Processing	CINEMA DSP	Yes (3D)
	DSP Programs	17
	Dialog Level Adjustment	Yes
	Virtual Presence Speaker	Yes
	Virtual Surround Back Speaker	Yes
	Dialogue Lift	Yes (no presence speakers required)
	SILENT CINEMA / Virtual CINEMA DSP	Yes (Virtual CINEMA FRONT)
	Dolby Atmos	Yes
	Dolby TrueHD	Yes
	Dolby Digital Plus	Yes
	Dolby Surround	Yes
	DTS:X	Yes
	DTS-HD Master Audio	Yes
Audio Features	Pure Direct	Yes (with video on mode)
	Compressed Music Enhancer	Yes (incl. enhancer for Bluetooth)
	YPAO sound optimization	Yes (R.S.C)
	YPAO Volume	Yes
	Adaptive DRC (Dynamic Range Control)	Yes
	Initial Volume & Maximum Volume Setting	Yes
	Bi-amp capability	Yes
	Audio Delay	Yes (0-500 ms)
	192kHz/24-bit DACs for all channels	Yes (Burr-Brown)
Video Features	4K Ultra HD Pass-through and upscaling	Yes (4K60p 4:4:4)
	HDMI 3D passthrough	Yes
	HDMI Audio Return Channel	Yes
	HDMI upscaling	Yes (Analogue to HDMI / HDMI to HDMI)
	Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync	Yes

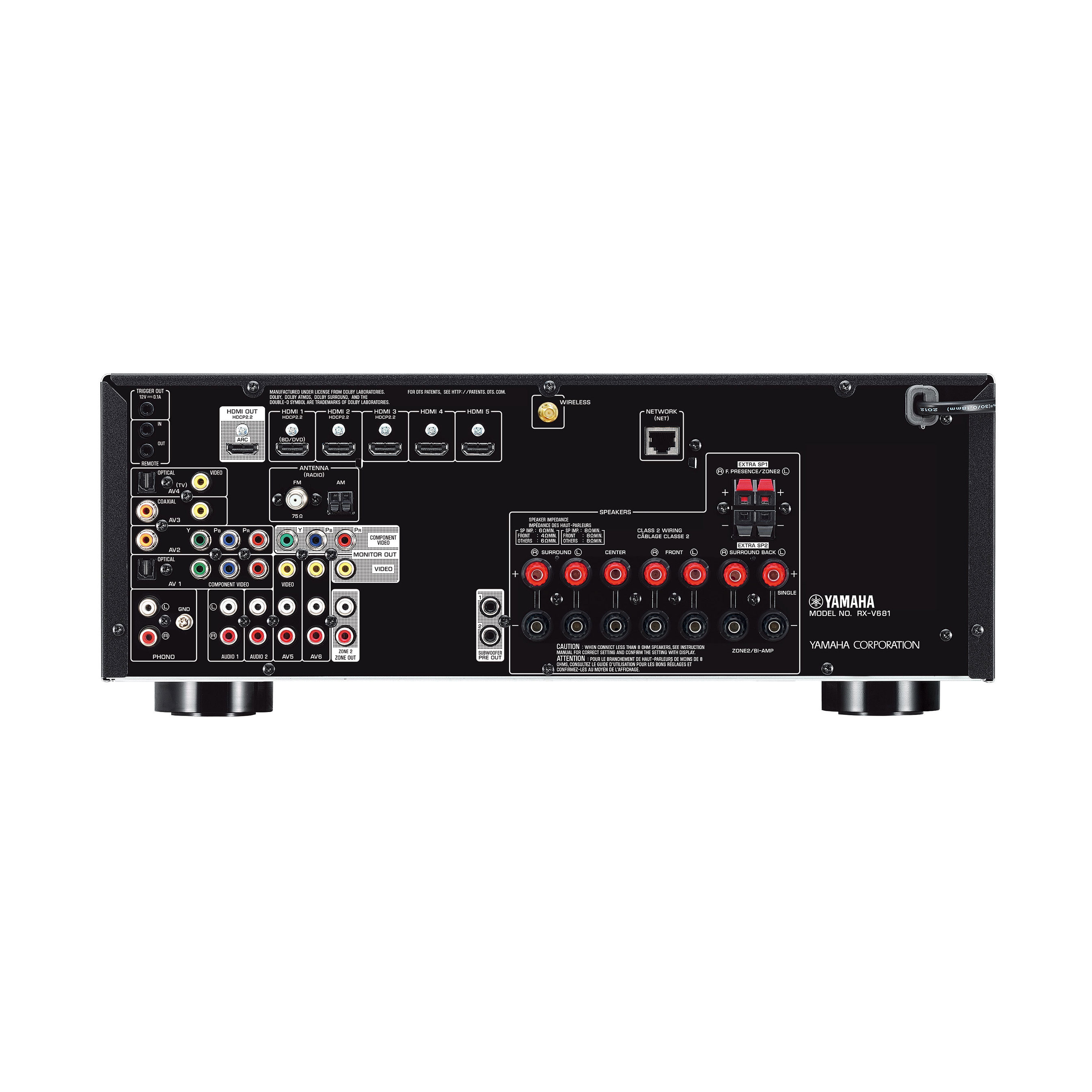

Connectivity	HDMI Input/Output	6 / 1 (HDCP2.2, HDR and BT.2020 compatible)
	HDMI CEC	Yes (SCENE, Device Control)
	USB Input	USB Memory, Portable Audio Player
	Network Port	Yes
	Wi-Fi	Yes (with Wireless Direct)
	AirPlay	Yes
	Bluetooth	Yes (SBC / AAC)
	Front AV Input	HDMI / USB
	Digital Audio Input/Output: Optical	2 / 0
	Digital Audio Input/Output: Coaxial	2 / 0
	Analog Audio Input/Output	5 / 0
	Phono Input	Yes
	Component Video Input/Output	2 / 1
	Composite Video Input/Output	4 / 1
	Preout	Subwoofer (2 x mono)
	Headphone Output	1
Tuner Section	FM/AM Tuner	Yes
User Interface	On-screen display	Graphical User Inter face
	SCENE	SCENE (4 sets)
	App Control	Yes (iPhone / iPad / Android phone / tablet)
	Web Browser Control	Yes
	Remote Control Unit	Yes
Zone Control	Zone 2 Audio Output	Preout
	Powered Zone	Zone 2
	+12V Trigger Output	1
	Remote (IR) Input/Output	1 / 1
General	Standby Power Consumption (IR only)	≤0.1W
	Auto Power Standby	Yes
	ECO mode	Yes
	Dimensions (W x H x D)	435 x 171 x 378 mm (with antenna up: 435 x 234 x 378 mm); 17-1/8” x 6-3/4” x 14-7/8” (with antenna up: 17-1/8” x 9-1/4” x 14-7/8”)
	Weight	10 kg; 22.1 lbs.
