Yamaha - CX-A5100

Absolute Quality, Absolute Realism.11.2-channel AV Pre-Amplifier at the pinnacle of the AVENTAGE Series.

Dolby Atmos® support
DTS:X™ support
AVENTAGE Concept 11.2-channel pre-amplifier

Description
- Absolute Quality, Absolute Realism.11.2-channel AV Pre-Amplifier at the pinnacle of the AVENTAGE Series. Superb sound quality combined with fine craftsmanship ensures an unequalled listening experience. Latest technologies include high rigidity chassis, ESS DACs and reliable balanced connection.

Specification

AV Receiver
Surround Sound Processing	CINEMA DSP	Yes (HD3)
	DSP Programs	33
	Dialog Level Adjustment	Yes
	Virtual Presence Speaker	Yes (with Virtual Rear Presence Speakers)
	Dialogue Lift	Yes (no presence speakers required)
	SILENT CINEMA / Virtual CINEMA DSP	Yes
	Dolby Atmos	Yes
	Dolby TrueHD	Yes
	Dolby Digital Plus	Yes
	Dolby Digital	Yes
	Dolby Pro Logic IIx	Yes
	DTS:X	Yes
	DTS-HD Master Audio	Yes
Audio Features	Pure Direct	Yes (with video on mode)
	Compressed Music Enhancer	Yes
	High-resolution Music Enhancer	Yes
	YPAO multi-point measurement	Yes with R.S.C. (Reflected Sound Control) and Angle measurement
	YPAO Volume	Yes
	Adaptive DRC (Dynamic Range Control)	Yes
	Initial Volume & Maximum Volume Setting	Yes
	A.R.T. Wedge	Yes
	Audio Delay	Yes (0-500 ms)
	192kHz/24-bit DACs for all channels	Yes (ESS) 192kHz/32-bit DACs for all channels incl. presence speakers
Video Features	4K Ultra HD Pass-through and upscaling	Yes (4K60p 4:4:4)
	HDMI 3D passthrough	Yes
	HDMI Audio Return Channel	Yes
	Component upconversion	Yes
	HDMI upscaling	Yes (Analogue to HDMI / HDMI to HDMI)
	Video adjustment	Yes
	Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync	Yes

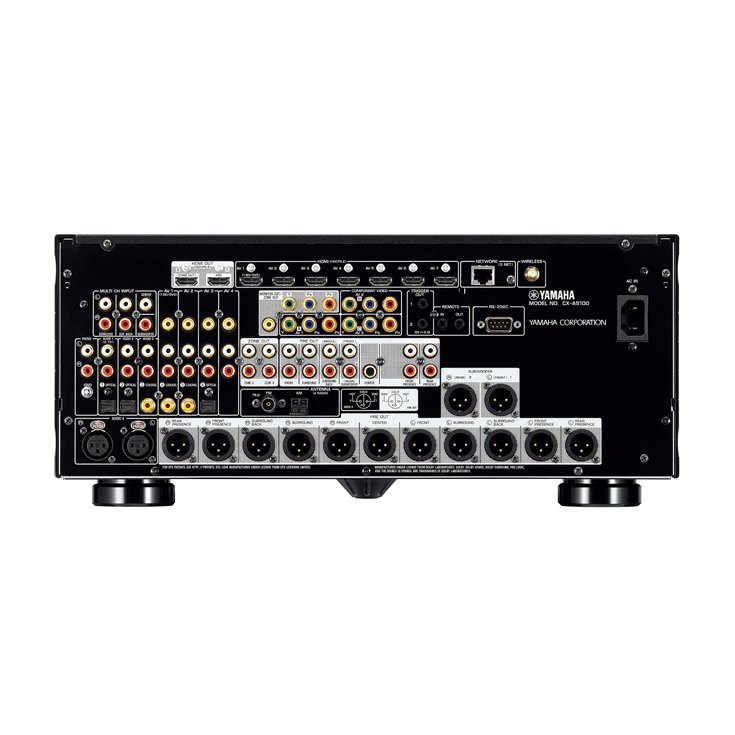

Connectivity	HDMI Input/Output	8 (HDMI1-7: HDCP2.2 compatible) / 2 (HDCP2.2 compatible)
	HDMI CEC	Yes (SCENE, Device Control)
	USB Input	iPod / iPhone, USB Memory, Portable Audio Player
	Network Port	Yes
	Wi-Fi	Yes (with Wireless Direct)
	AirPlay	Yes
	Bluetooth	Yes
	Front AV Input	HDMI / USB / Analogue Audio / Optical / Composite
	Digital Audio Input/Output: Optical	3 / 0
	Digital Audio Input/Output: Coaxial	3 / 0
	Analog Audio Input/Output	XLR Balance: 1 / 0, RCA Unbalance: 9 (front 1) / 0
	Phono Input	Yes
	Component Video Input/Output	3 / 1
	Composite Video Input/Output	5 (front 1) / 1
	Preout	XLR Balance: 11.2ch, RCA Unbalance: 11.2ch
	Headphone Output	1
Tuner Section	FM/AM Tuner	Yes
User Interface	On-screen display	Graphical User Interface
	SCENE	SCENE PLUS (12 sets)

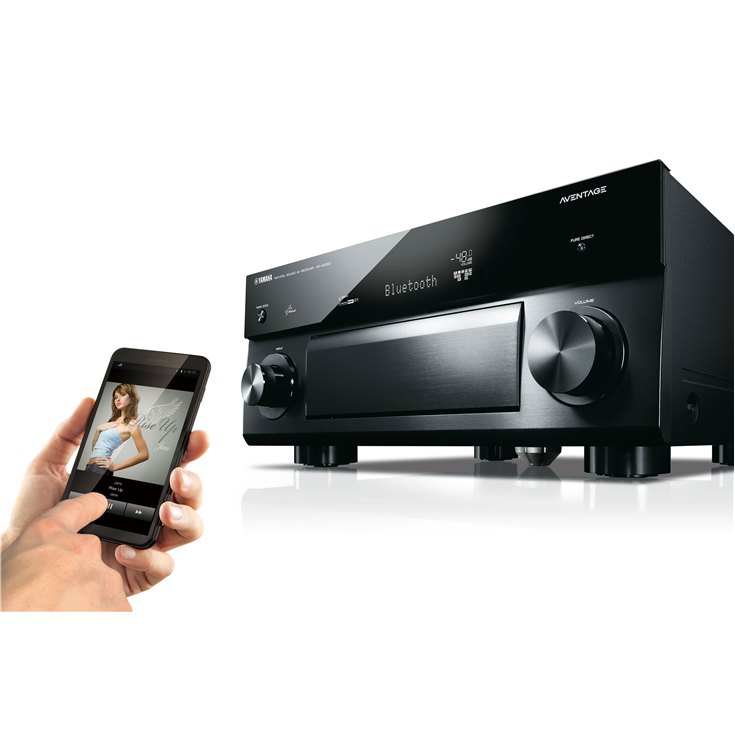

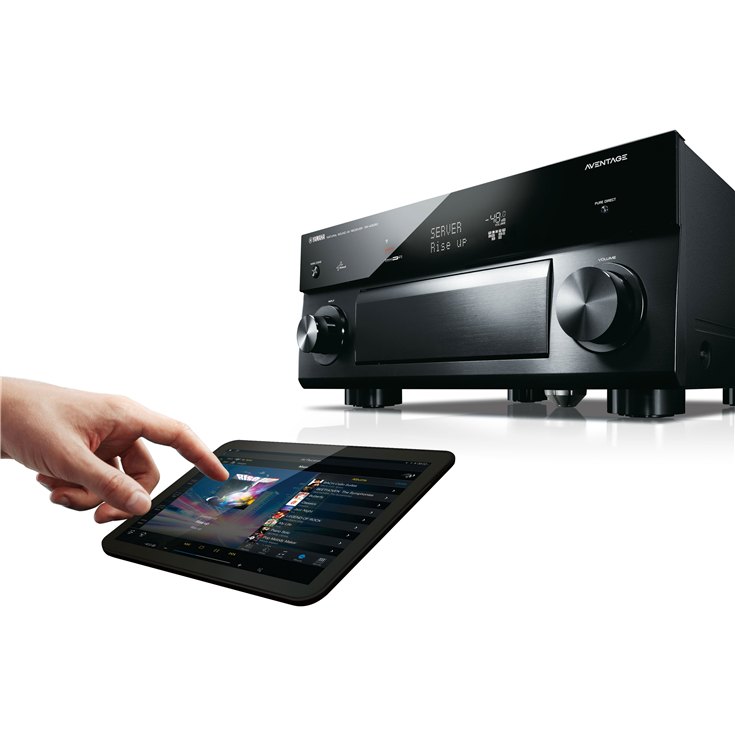

	App Control	Yes (iPhone / iPad / Android phone / tablet)
	Web Browser Control	Yes
	Remote Control Unit	Yes (Preset, Learning, Macro, Full LED Backlight)
Zone Control	Zone 2 Audio Output	Preout / HDMI
	Zone 3 Audio Output	Preout
	Zone 4 Audio Output	HDMI
	Zone Video Output	HDMI / Component / Composite
	Zone HDMI	Yes (Advanced HDMI Zone Switching)
	Zone B Output	HDMI
	Zone GUI	Yes
	RS-232C Interface	Yes
	+12V Trigger Output	2
	Remote (IR) Input/Output	1 / 1
	Party Mode	Yes
General	Standby Power Consumption (IR only)	≤0.1W (typical)
	Auto Power Standby	Yes
	Dimensions (W x H x D)	435 x 192 x 474 mm (with antenna up: 435 x 247 x 474 mm); 17-1/8” x 7-1/2” x 18-5/8” (with antenna up: 17-1/8” x 9-3/4” x 18-5/8”)
	Weight	13.5 kg; 29.8 lbs.
