Yamaha - MX-A5000

Absolute Quality, Massive Power.11-channel Power Amplifier delivers top-grade AVENTAGE Series performance.

11-channel overwhelming power amplification
--- 150 W per channel (8 ohms, 20 Hz-20 kHz, 0.06 % THD, 2 ch driven)
--- 170 W per channel (8 ohms, 1 kHz, 0.9 % THD, 2 ch driven)
--- 290 W per channel (4 ohms, 1 kHz, 0.9 % THD, 1 ch driven [European Model])

Description
- Absolute Quality, Massive Power.11-channel Power Amplifier delivers top-grade AVENTAGE Series performance. Incredibly clean, transparent output at all power levels. High rigidity chassis, high sound quality parts and reliable balanced connection for optimum performance, with flexible system building.

Specification

AV Receiver
Amplifier Section	Channel	11
	Rated Output Power (1kHz, 1ch driven)	290 W (4 ohms, 0.9% THD [European Model]), 230 W (6 ohm, 0.9% THD), 190 W (8 ohm, 0.9% THD)
	Rated Output Power (1kHz, 2ch driven)	170 W (8 ohm, 0.9% THD)
	Rated Output Power (20Hz-20kHz, 2ch driven)	170 W (6 ohm, 0.06% THD), 150 W (8 ohm, 0.06% THD)
	Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)	280 W (6 ohm, 10% THD), 230 W (8 ohm, 10% THD)
	Dynamic Power per Channel (8/6/4/2 ohms)	190 / 250 / 350 / 500 W
Audio Features	Digital ToP-ART / High Current Amplification	Three-stage Darlington Power Stage
Audio Features	Current Feedback Amplifier Circuit	Yes

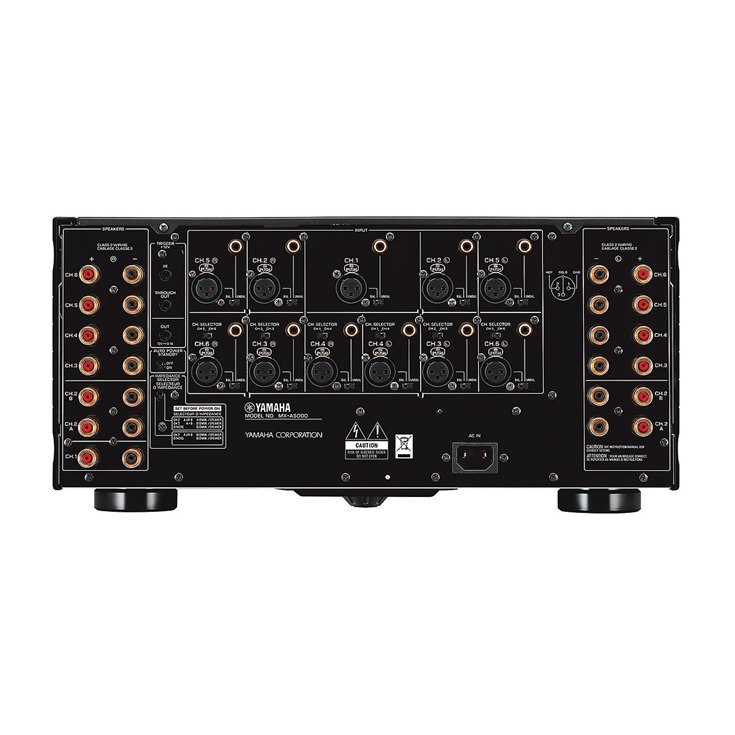

Connectivity	Analog Audio Input/Output	XLR Balance: 11 / 0, RCA Unbalance: 11 / 0
Zone Control	+12V Trigger Output	Out:1, Trigger in / Through: 1 / 1
General	Auto Power Standby	Yes (ON / OFF switch)
	Power Consumption	650 W
	Dimensions (W x H x D)	435 x 210 x 463.5 mm; 17-1/8” x 8-1/4” x 18-1/8”
	Weight	25.4 kg; 56 lbs.
