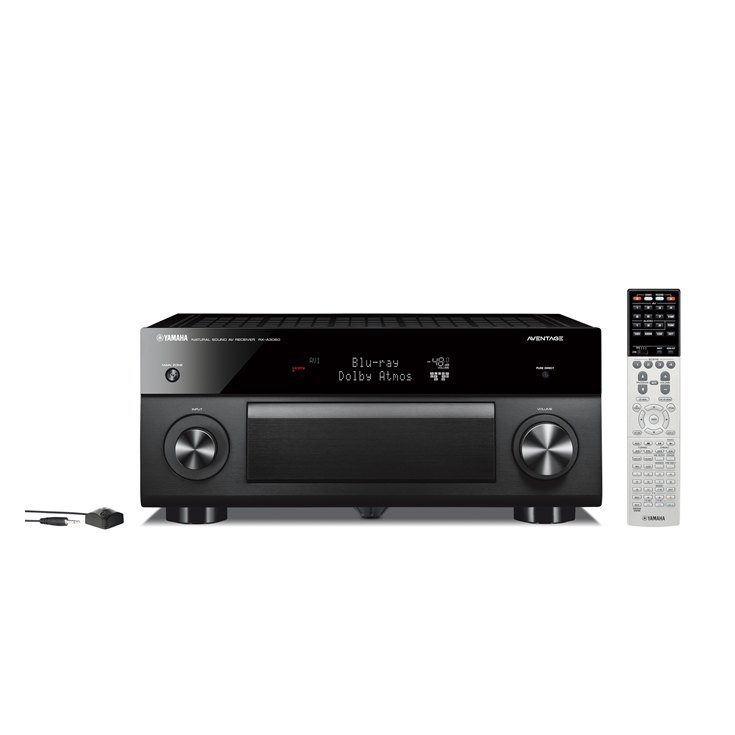

Yamaha - RX-A3060

Highest performance AVENTAGE AV receiver supports Dolby Atmos® and DTS-X™ playback with CINEMA DSP HD3 and offers many outstanding features...

Dolby Atmos® and DTS:X™ support
Dolby Atmos and DTS-X playback with CINEMA DSP HD3
Enhanced – a new cinema sound programme developed on the 30th anniversary of CINEMA DSP

Description
- Highest performance AVENTAGE AV receiver supports Dolby Atmos® and DTS-X™ playback with CINEMA DSP HD3 and offers many outstanding features including 11.2-channel expandability for an unmatched 3D AV experience, high 64-bit precision EQ calculation YPAO™, super-high quality ESS DAC and Zone 2/3 audio processing.

Specification

AV Receiver
Amplifier Section	Channel	9.2
	Rated Output Power (1kHz, 1ch driven)	230 W (4 ohms, 0.9% THD [European Model])
	Rated Output Power (20Hz-20kHz, 2ch driven)	150 W (8 ohms, 0.06% THD)
	Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)	230 W (8 ohms, 10% THD)
	Dynamic Power per Channel (8/6/4/2 ohms)	175 / 220 / 295 / 410 W
Surround Sound Processing	CINEMA DSP	Yes (HD3)
	DSP Programs	24
	Dialog Level Adjustment	Yes
	Virtual Presence Speaker	Yes
	Virtual Surround Back Speaker	Yes
	Dialogue Lift	Yes (no presence speakers required)
	SILENT CINEMA / Virtual CINEMA DSP	Yes (Virtual CINEMA FRONT)
	Dolby Atmos	Yes
	Dolby TrueHD	Yes
	Dolby Digital Plus	Yes
	Dolby Surround	Yes
	DTS:X	Yes
	DTS-HD Master Audio	Yes
Audio Features	Pure Direct	Yes (with video on mode)
	Compressed Music Enhancer	Yes
	High-resolution Music Enhancer	Yes

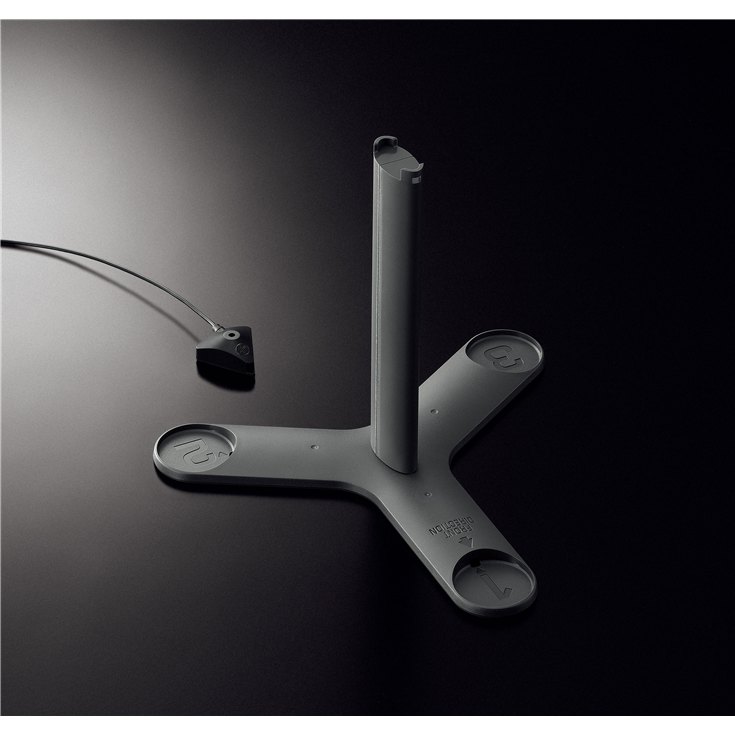

	YPAO multi-point measurement	Yes with R.S.C. (Reflected Sound Control), 3D, 64-bit Precision EQ Calculation and Angle Measurement
	YPAO Volume	Yes
	Adaptive DRC (Dynamic Range Control)	Yes
	Initial Volume & Maximum Volume Setting	Yes
	A.R.T. Wedge	Yes
	Bi-amp capability	Yes
	Audio Delay	Yes (0-500 ms)
	192kHz/24-bit DACs for all channels	ESS SABRE32™ Ultra DAC (for main 7 channels)
Video Features	4K Ultra HD Pass-through and upscaling	Yes (4K/60p, 4:4:4)
	HDMI 3D passthrough	Yes
	HDMI Audio Return Channel	Yes
	HDMI upscaling	Yes (Analogue to HDMI / HDMI to HDMI)
	Video adjustment	Yes
	Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync	Yes

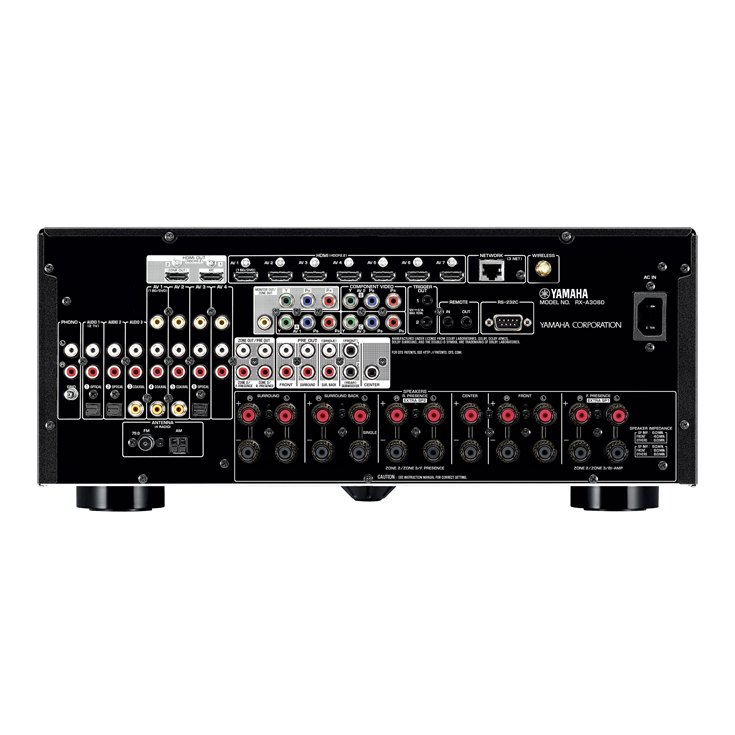

Connectivity	HDMI Input/Output	8 (HDMI1-7: HDCP2.2 compatible) / 2 (HDCP2.2 compatible)
	HDMI CEC	Yes (SCENE, Device Control)
	USB Input	USB Memory, Portable Audio Player
	Network Port	Yes
	Wi-Fi	Yes (with Wireless Direct)
	AirPlay	Yes

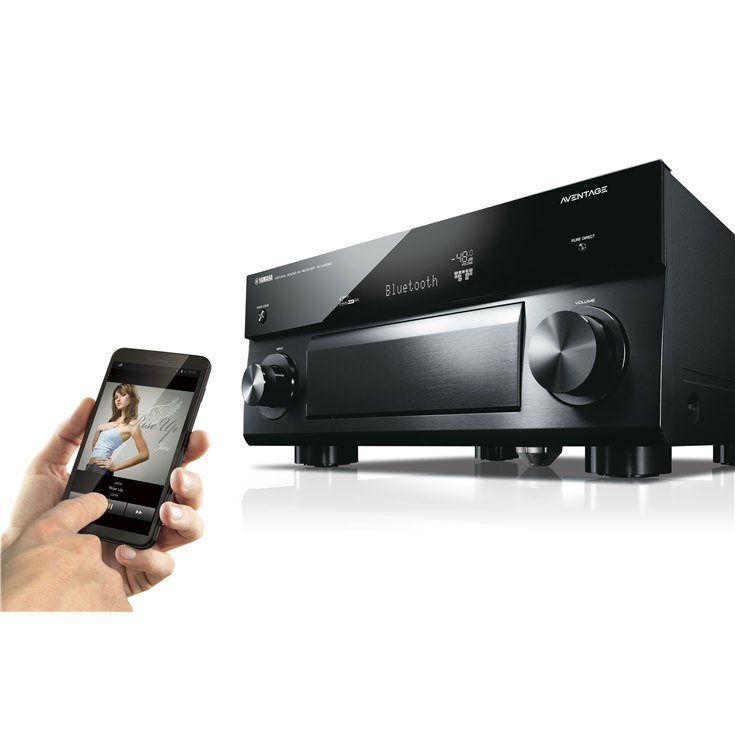

	Bluetooth	Yes (SBC / AAC)

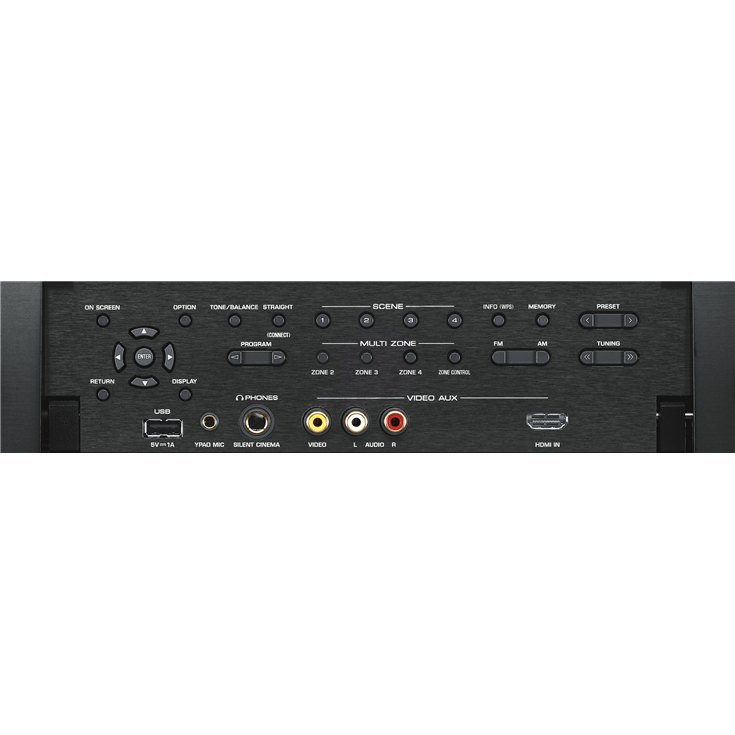

	Front AV Input	HDMI / USB / Analogue Audio / Composite
	Digital Audio Input/Output: Optical	3 / 0
	Digital Audio Input/Output: Coaxial	3 / 0
	Analog Audio Input/Output	9 (front 1) / 0
	Phono Input	Yes
	Component Video Input/Output	3 / 1
	Composite Video Input/Output	5 (front 1) / 1
	Preout	11.2-ch
	Headphone Output	1
Tuner Section	FM/AM Tuner	Yes
User Interface	On-screen display	Graphical User Interface
	SCENE	SCENE PLUS (12 sets)

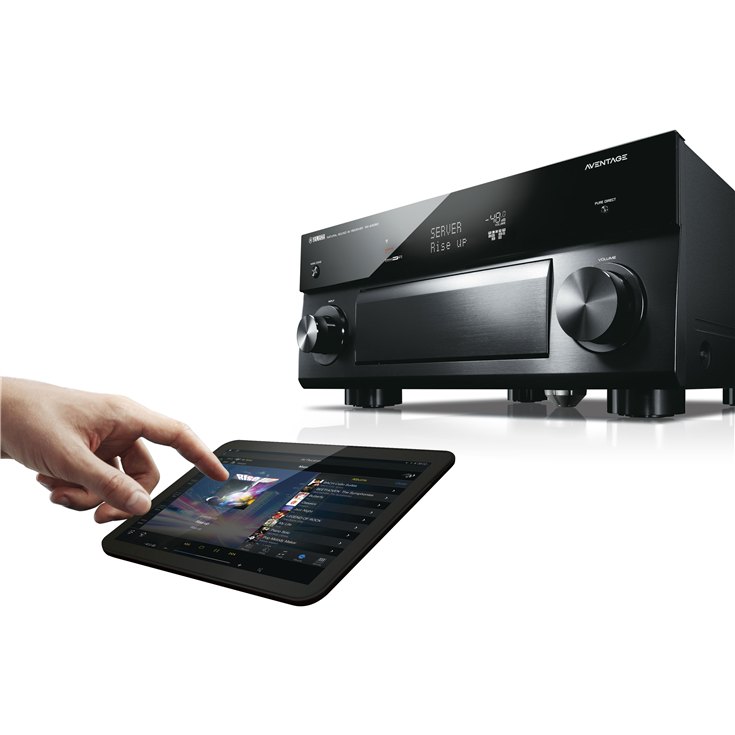

	App Control	Yes (iPhone / iPad / Android phone / tablet)
	Web Browser Control	Yes
	Remote Control Unit	Yes (Preset)
Zone Control	Zone 2 Audio Output	Preout / HDMI
	Zone 3 Audio Output	Preout
	Zone 4 Audio Output	HDMI
	Powered Zone	Zone 2 / 3
	Zone Video Output	HDMI / Component / Composite
	Zone HDMI	Yes (Advanced HDMI Zone Switching)
	Zone B Output	HDMI
	Zone GUI	Yes
	RS-232C Interface	Yes
	+12V Trigger Output	2
	Remote (IR) Input/Output	1 / 1
	Party Mode	Yes
General	Standby Power Consumption (IR only)	≤0.1W
	Auto Power Standby	Yes
	ECO mode	Yes
	Dimensions (W x H x D)	435 x 192 x 474 mm (with antenna up: 435 x 247 x 474 mm); 17-1/8” x 7-1/2” x 18-5/8” (with antenna up: 17-1/8” x 9-3/4” x 18-5/8”)
	Weight	19.6 kg; 43.2 lbs.
