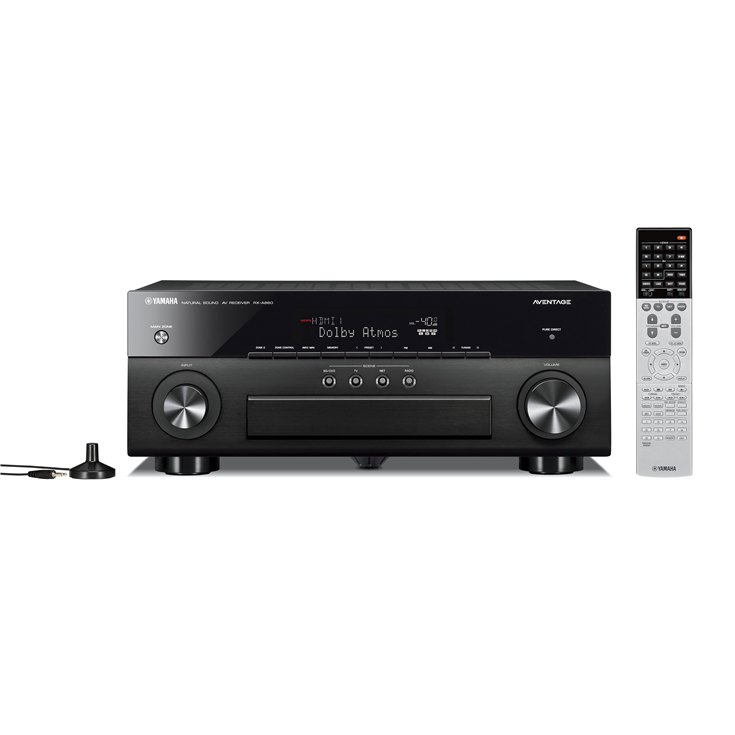

Yamaha - RX-A860

7.2-channel AVENTAGE AV receiver with tremendous power, superb performance and Yamaha’s advance Anti-Resonance Technology.

Dolby Atmos® and DTS:X™ support
AVENTAGE AV receivers: Designed to deliver the highest levels of audio performance
Aluminium front panel offers visual and aural benefits

Description
- 7.2-channel AVENTAGE AV receiver with tremendous power, superb performance and Yamaha’s advance Anti-Resonance Technology. An extensive range of features includes support for Dolby Atmos® and DTS:X™ formats, as well as MusicCast and HDMI® with support for 4K/60p, 4:4:4, HDCP2.2, HDR and BT.2020, plus a phono input.

Specification

AV Receiver
Amplifier Section	Channel	7.2
	Rated Output Power (1kHz, 1ch driven)	160 W (4 ohms, 0.9% THD)
	Rated Output Power (20Hz-20kHz, 2ch driven)	100 W (8 ohms, 0.06% THD)
	Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)	160 W (8 ohms, 10% THD)
	Dynamic Power per Channel (8/6/4/2 ohms)	130 / 170 / 195 / 240 W
Surround Sound Processing	CINEMA DSP	Yes (3D)
	DSP Programs	17
	Dialog Level Adjustment	Yes
	Virtual Presence Speaker	Yes
	Virtual Surround Back Speaker	Yes
	Dialogue Lift	Yes (no presence speakers required)
	SILENT CINEMA / Virtual CINEMA DSP	Yes (Virtual CINEMA FRONT)
	Dolby Atmos	Yes
	Dolby TrueHD	Yes
	Dolby Digital Plus	Yes
	Dolby Surround	Yes
	DTS-HD Master Audio	Yes
Audio Features	Pure Direct	Yes (with video on mode)
	Compressed Music Enhancer	Yes (incl. enhancer for Bluetooth)
	YPAO multi-point measurement	Yes (R.S.C)
	YPAO Volume	Yes
	Adaptive DRC (Dynamic Range Control)	Yes
	Initial Volume & Maximum Volume Setting	Yes
	A.R.T. Wedge	Yes
	Bi-amp capability	Yes
	Audio Delay	Yes (0-500 ms)
	192kHz/24-bit DACs for all channels	Yes (Burr-Brown)
Video Features	4K Ultra HD Pass-through and upscaling	Yes (4K/60p, 4:4:4)
	HDMI 3D passthrough	Yes
	HDMI Audio Return Channel	Yes
	HDMI upscaling	Yes (Analogue to HDMI / HDMI to HDMI)
	Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync	Yes
Connectivity	HDMI Input/Output	8 (HDMI1,2,3:HDCP2.2 compatible) / 2 (HDCP2.2 compatible)
	HDMI CEC	Yes (SCENE, Device Control)
	USB Input	USB Memory, Portable Audio Player
	Network Port	Yes
	Wi-Fi	Yes (with Wireless Direct)
	AirPlay	Yes
	Bluetooth	Yes (SBC / AAC)
	Front AV Input	HDMI / USB / Analogue Audio / Composite
	Digital Audio Input/Output: Optical	2 / 0
	Digital Audio Input/Output: Coaxial	2 / 0
	Analog Audio Input/Output	6 (front 1) / 0
	Phono Input	Yes
	Component Video Input/Output	2 / 1
	Composite Video Input/Output	5 (front 1) / 1
	Preout	7.2-ch
	Headphone Output	1
Tuner Section	FM/AM Tuner	Yes
User Interface	On-screen display	Graphical User Inter face
	SCENE	SCENE (4 sets)
	App Control	Yes (iPhone / iPad / Android phone / tablet)
	Web Browser Control	Yes
	Remote Control Unit	Yes
Zone Control	Zone 2 Audio Output	Line output
	Powered Zone	Zone 2
	Zone B Output	Yes (HDMI)
	RS-232C Interface	Yes
	+12V Trigger Output	1
	Remote (IR) Input/Output	1 / 1
General	Standby Power Consumption (IR only)	≤0.1W
	Auto Power Standby	Yes
	ECO mode	Yes
	Dimensions (W x H x D)	435 x 171 x 382 mm (with antenna up: 435 x 234 x 382 mm); 17-1/8” x 6-3/4” x 15” (with antenna up: 17-1/8” x 9-1/4” x 15”)
	Weight	10.5 kg; 23.2 lbs.
